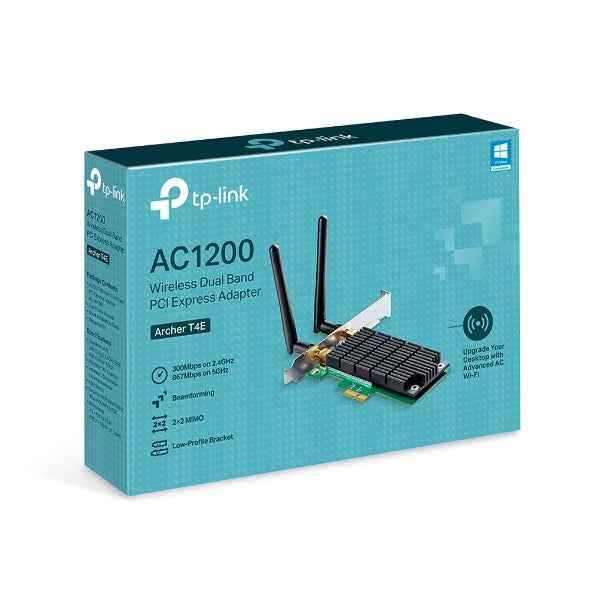

TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter

Description:

The TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter is the perfect solution to upgrade your desktop to the latest Wi-Fi technology. With up to 1200 Mbps Wi-Fi speeds, this adapter supports both 2.4GHz (300 Mbps) and 5GHz (867 Mbps) bands, ensuring an optimal and reliable wireless experience. Thanks to its 802.11ac technology, it offers three times faster speeds than the older 802.11n standard, making it ideal for high-intensity network usage such as HD streaming, online gaming, and large file downloads.

The Archer T4E features Beamforming technology, which strengthens Wi-Fi signals in the direction of connected devices, providing better coverage and improved signal stability. With two external antennas, this adapter ensures a broad wireless range and enhanced performance. The adapter is easy to install—simply plug it into an available PCI-E slot, and you're ready to enjoy high-speed wireless connectivity.

Key Features:

• High-Speed Wi-Fi: Enjoy speeds of up to 1200 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), perfect for demanding tasks like HD streaming and online gaming.
• 802.11ac Dual Band: Enjoy three times faster speeds than the older 802.11n standard for an improved overall Wi-Fi experience.
• Beamforming Technology: Focuses the Wi-Fi signal towards your device for a stronger, more stable connection.
• Easy Installation: Simply plug the adapter into an available PCI-E slot to upgrade your desktop's wireless capabilities.
• Multiple-Size Brackets: Includes both low profile and full height brackets, making it compatible with all PC builds.
• 2×2 MIMO: Provides reliable, high-speed wireless connections by allowing simultaneous data transmission and reception.
• Broad Wireless Range: With two external antennas, enjoy wider coverage and enhanced signal stability.

Specifications:

• Interface: PCI Express (PCI-E)
• Wireless Standards: IEEE 802.11ac, IEEE 802.11a/b/g/n
• Frequency:
  • 5GHz: Up to 867 Mbps
  • 2.4GHz: Up to 300 Mbps
• Signal Rate:
  • 5GHz 11ac: Up to 867 Mbps (dynamic)
  • 2.4GHz 11n: Up to 300 Mbps (dynamic)
• Reception Sensitivity:
  • 5GHz:
    • 11ac VHT80 MCS9: -62dBm
    • 11ac VHT40 MCS9: -65dBm
  • 2.4GHz:
    • 11n HT40 MCS7: -73dBm
    • 11n HT20 MCS7: -76dBm
• Transmit Power: < 20dBm (EIRP)

Wireless Features:

• Beamforming: Focuses the signal towards your device for better performance.
• MIMO Technology: 2×2 MIMO allows for high-speed simultaneous data transfer, enhancing your overall wireless experience.
• Wireless Security: Supports 64/128-bit WEP, WPA-PSK, WPA2-PSK, and 802.1x encryption methods for a secure connection.

Physical Features:

• Antenna Type: 2 external antennas (Omni-directional)
• Brackets Included: Low profile and full height brackets for compatibility with all PC types.
• Dimensions: 4.2 x 3.1 x 1.1 in. (107.6 x 79 x 27.9 mm)

Package Contents:

• Archer T4E PCI Express Adapter
• Low Profile Bracket
• Full Height Bracket
• Resource CD
• Quick Installation Guide

System Requirements:

• Windows 10/8.1/8/7/XP
• Linux (kernel 2.6 or later)

Operating Environment:

• Operating Temperature: 0°C40°C (32°F104°F)
• Storage Temperature: -40°C70°C (-40°F158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

With the TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter, you can easily upgrade your desktop’s Wi-Fi performance and enjoy ultra-fast speeds and enhanced stability for all your internet-connected activities. Whether for HD streaming, gaming, or general browsing, this adapter provides seamless, reliable wireless connectivity for a superior user experience.
