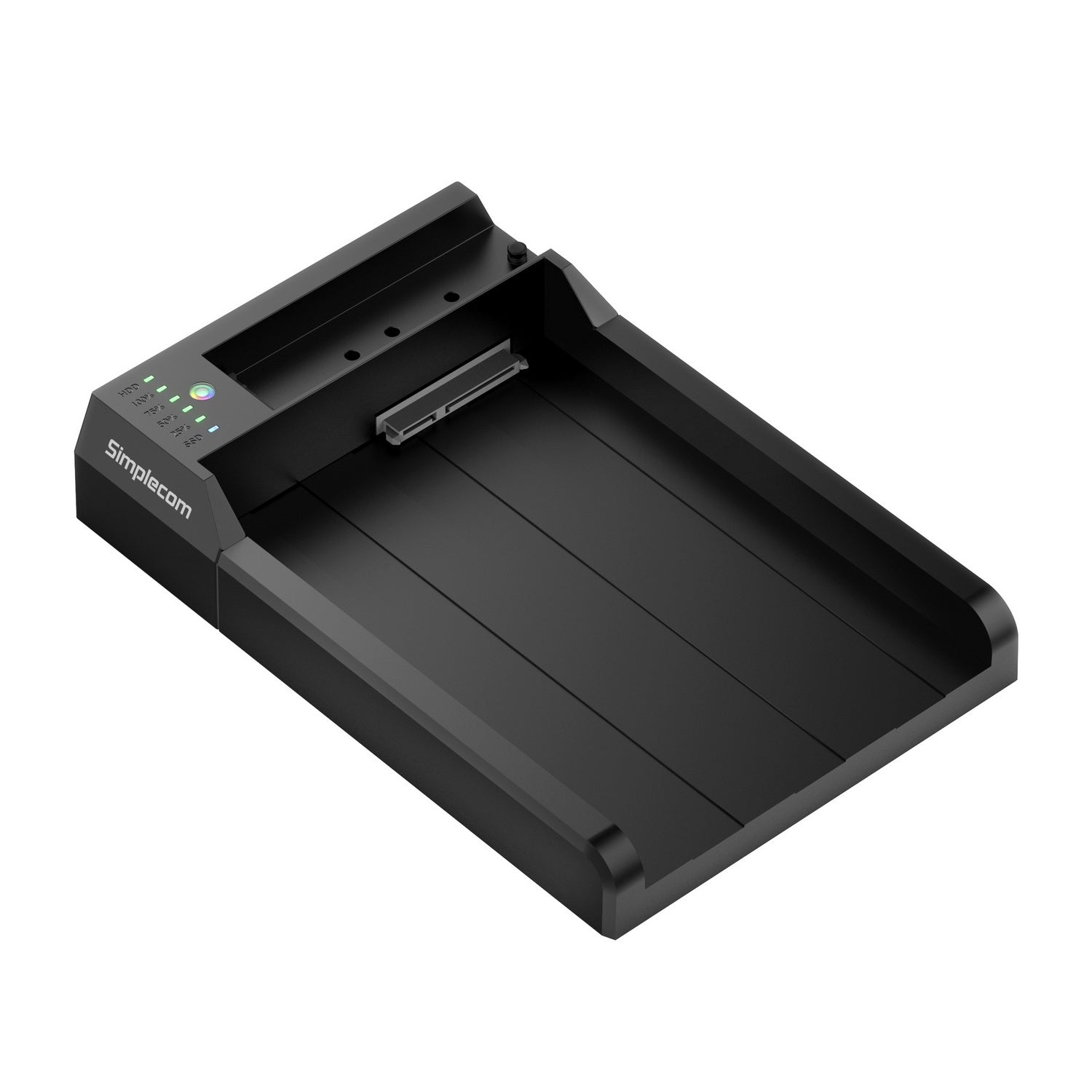

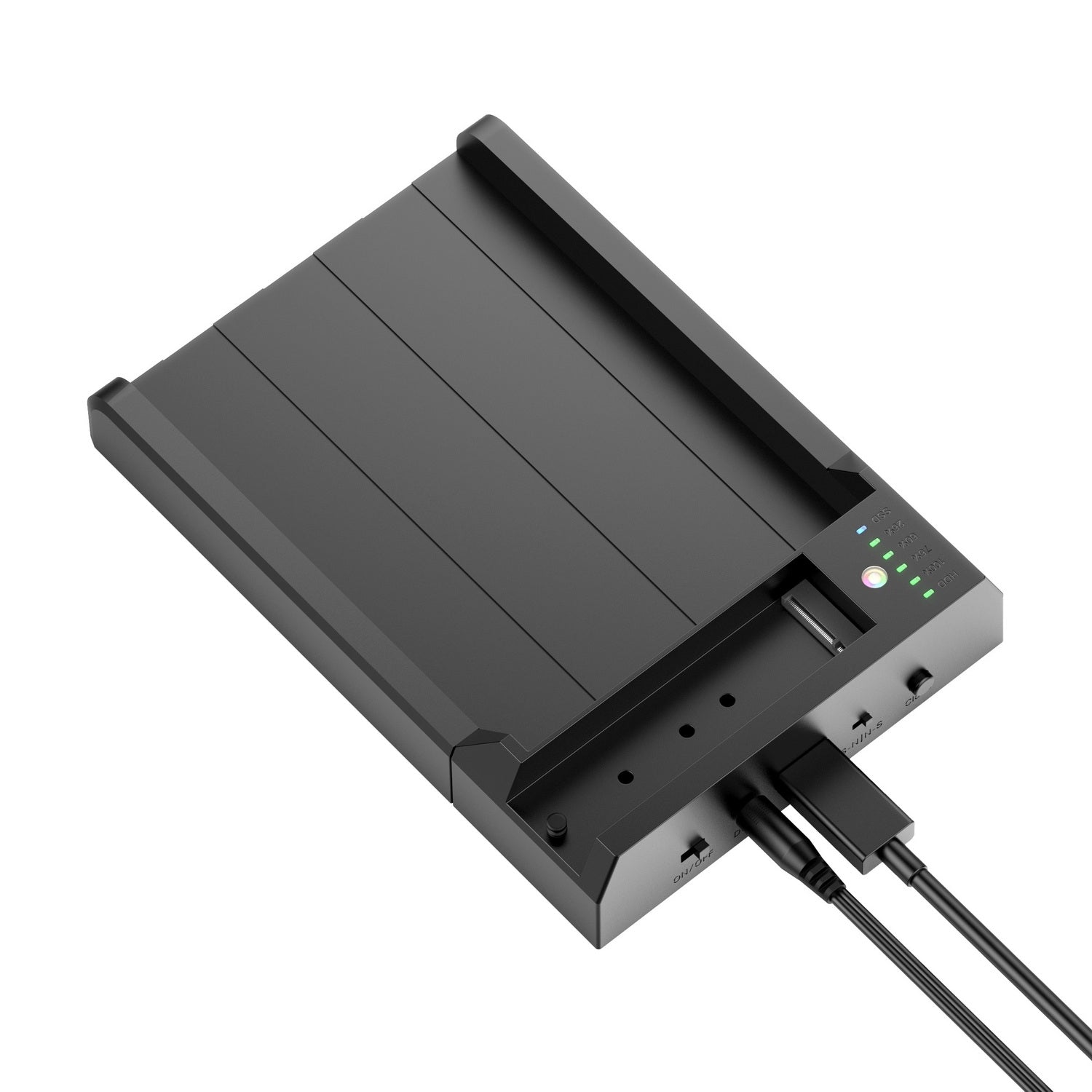

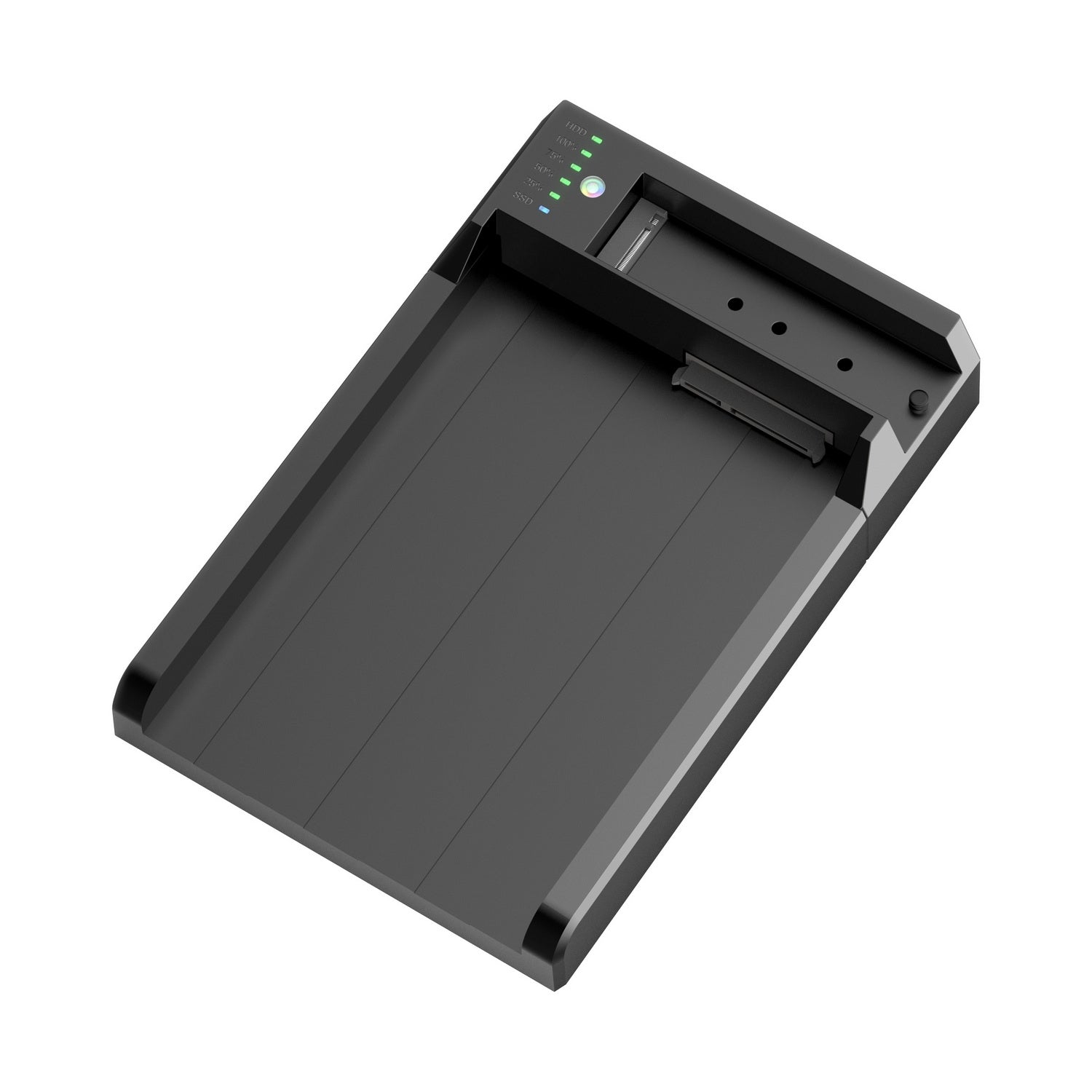

SD570 USB Docking Station for NVMe M.2 & SATA Drives – Dual Slot | 10Gbps Transfer Speed | Offline Clone Support

Description:

The SD570 is an advanced, all-in-one USB docking station designed to enhance your storage capabilities with effortless access to both NVMe M.2 and SATA drives. With its dual-slot configuration, the SD570 allows you to utilize both NVMe M.2 SSDs and 3.5"/2.5" SATA HDD/SSD drives simultaneously. Offering USB 3.2 Gen 2 support, this docking station provides an ultra-fast 10Gbps data transfer rate, ideal for efficient data management, cloning, backup, and migration.

Key Features:

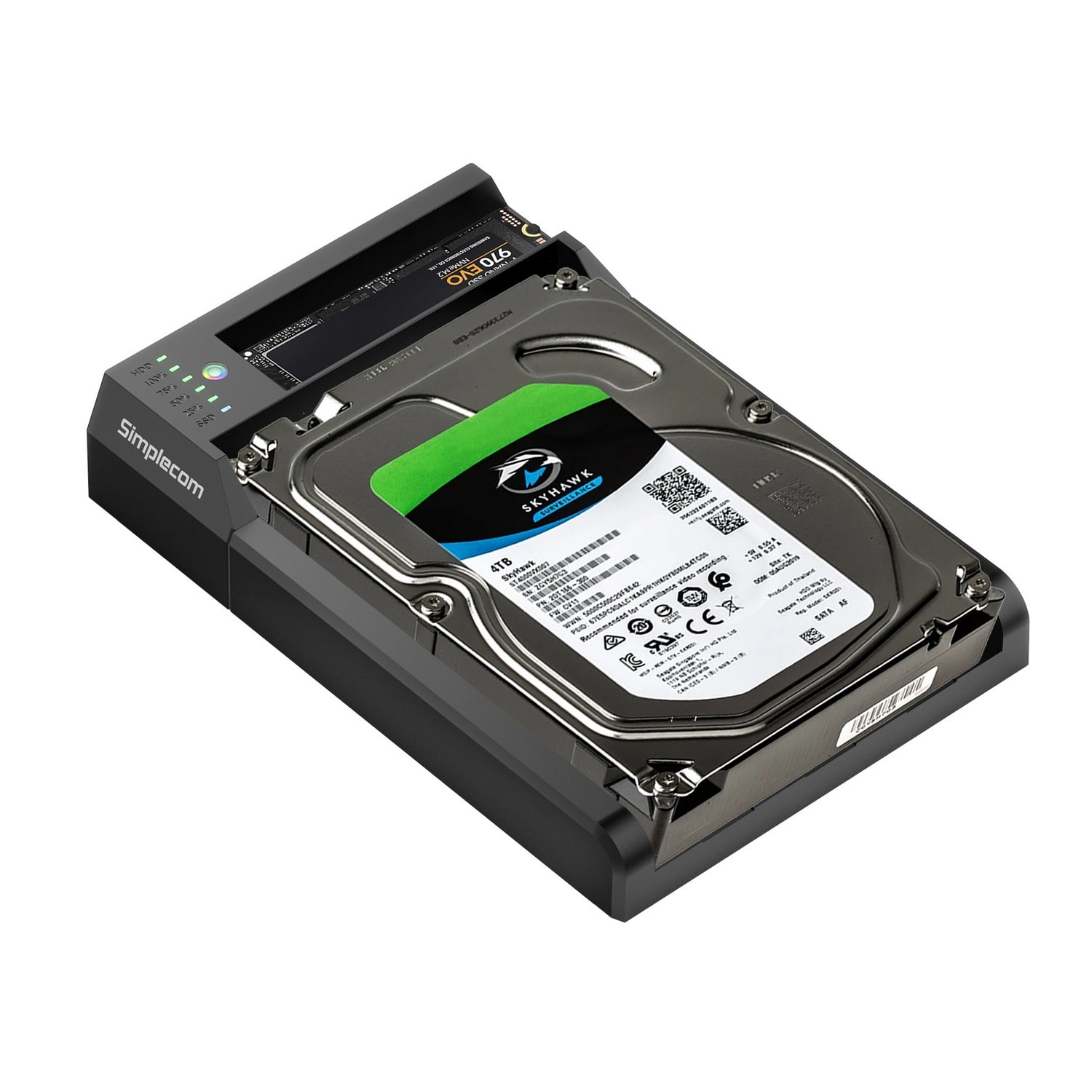

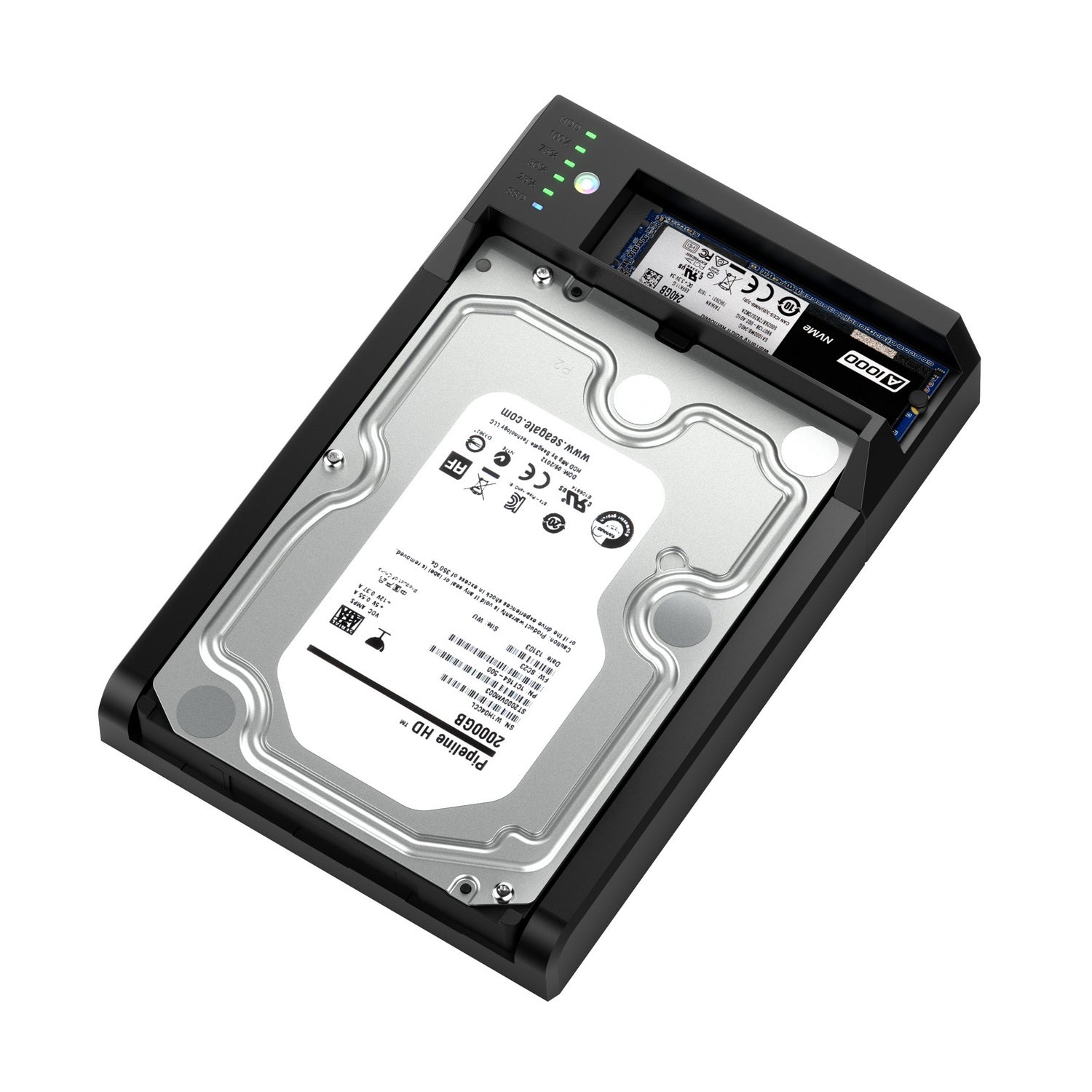

• Dual Slot Functionality: Supports both NVMe M.2 SSD (2230, 2242, 2260, 2280) and SATA drives (3.5" or 2.5" HDD/SSD).
• Multi-LUN Support: Each slot is recognized as a separate logical unit, allowing you to access both drives at once, making it simple to copy files between them.
• High-Speed Transfer: USB 3.2 Gen 2 interface delivers speeds of up to 10Gbps, ensuring lightning-fast file transfers for demanding tasks.
• Offline Cloning: The SD570 functions as a standalone duplicator dock, allowing for two-way cloning between NVMe M.2 and SATA drives without the need for a computer.
• Clone Direction Switch: Easily switch between two-way cloning for flexible data management, whether you're backing up or migrating files.
• TRIM Support: Maintain optimal performance and longevity with TRIM support for improved data writing to SSDs.
• USB Power Delivery (USAP): Provides maximum performance with support for USAP (USB Attached SCSI Protocol).
• Plug and Play: No driver installation required, making it incredibly easy to set up and use.
• LED Indicator Lights: Clear visual indicators show power status and drive activity.

Specifications:

• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: Up to 10Gbps
• NVMe Slot Support: NVMe M.2 SSD (2230/2242/2260/2280)
• SATA Slot Support: 3.5" or 2.5" SATA HDD/SSD
• Multi-LUN Support: Yes (separate drive letters for each slot)
• Offline Clone Support: Yes (two-way cloning)
• DC Input: 12V/3A
• Net Weight: 163g
• Dimensions: 181 x 122 x 34mm (LxWxH)
• Operating System Support: Windows 7 and above, Mac OS 10.8 and above

Package Contents:

• 1x SD570 Docking Station
• 1x USB-C to USB-C Cable
• 1x Power Adapter
• 1x User Manual

Important Notes:

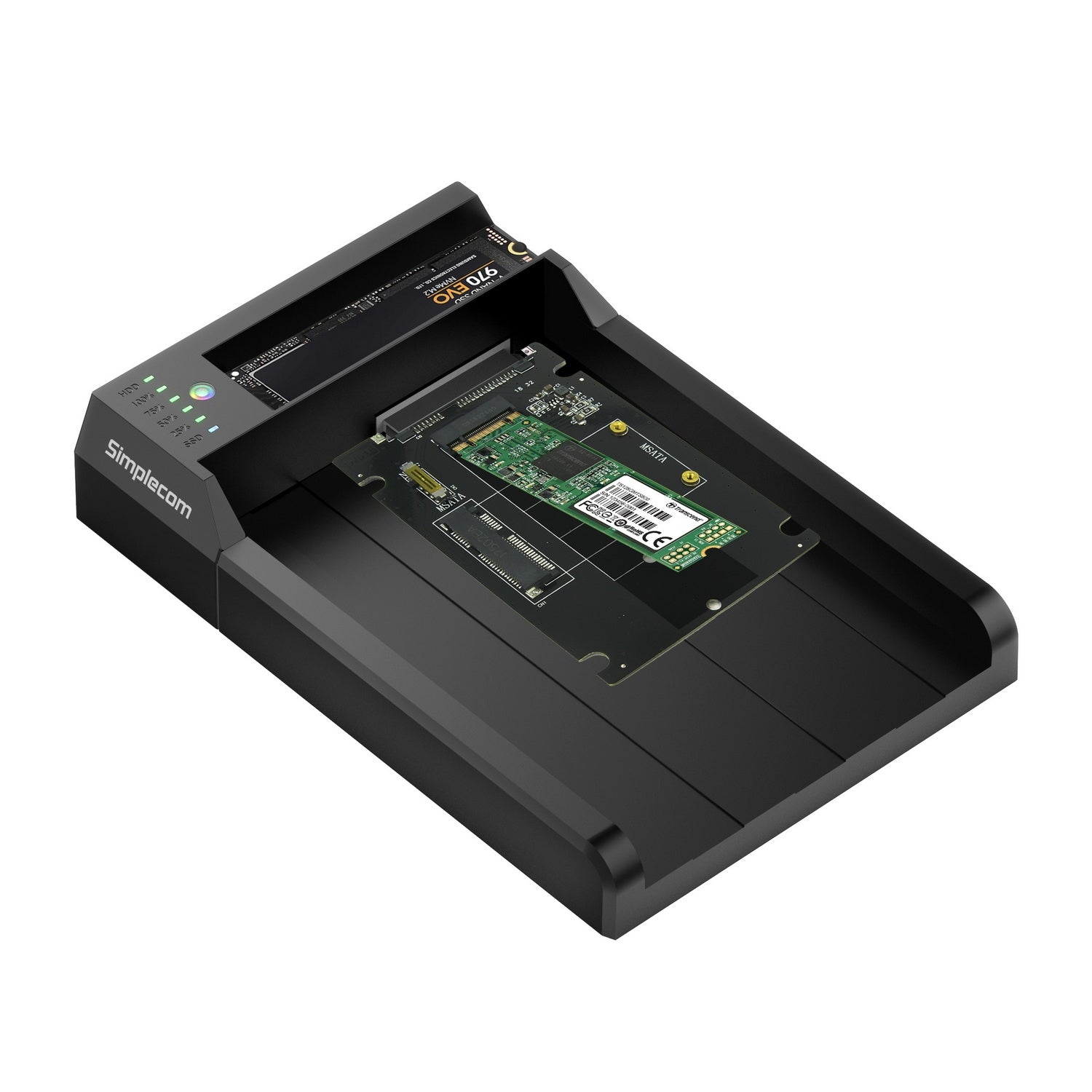

• M.2 Slot Compatibility: The M.2 slot is designed for NVMe M.2 SSD only. SATA M.2 and mSATA SSDs are supported with an optional SATA to M.2 and mSATA adapter (SA207, sold separately).
• Avoid Interruptions: Do not plug or unplug drives when another slot is being accessed to avoid data corruption.
• SSD Temperature: M.2 drives may reach up to 70°C during operation—handle with caution.
• Clone Direction Switch: Ensure the switch is set correctly to avoid data loss during duplication.
• 10Gbps Transfer Speed: To achieve 10Gbps speeds, a USB 3.2 Gen 2 or Thunderbolt 3 interface is required.

The SD570 Docking Station is the ultimate solution for users looking to manage multiple drives, perform fast file transfers, and execute secure backups or cloning. Perfect for both home and office environments, this sleek and efficient docking station saves valuable time and simplifies your workflow with high-performance connectivity.
