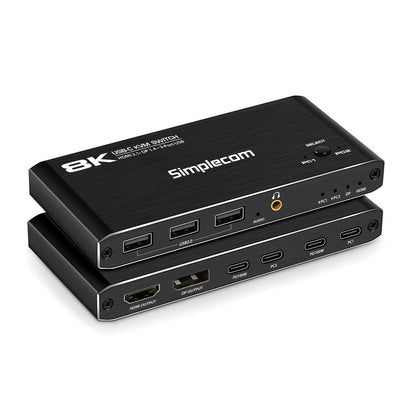

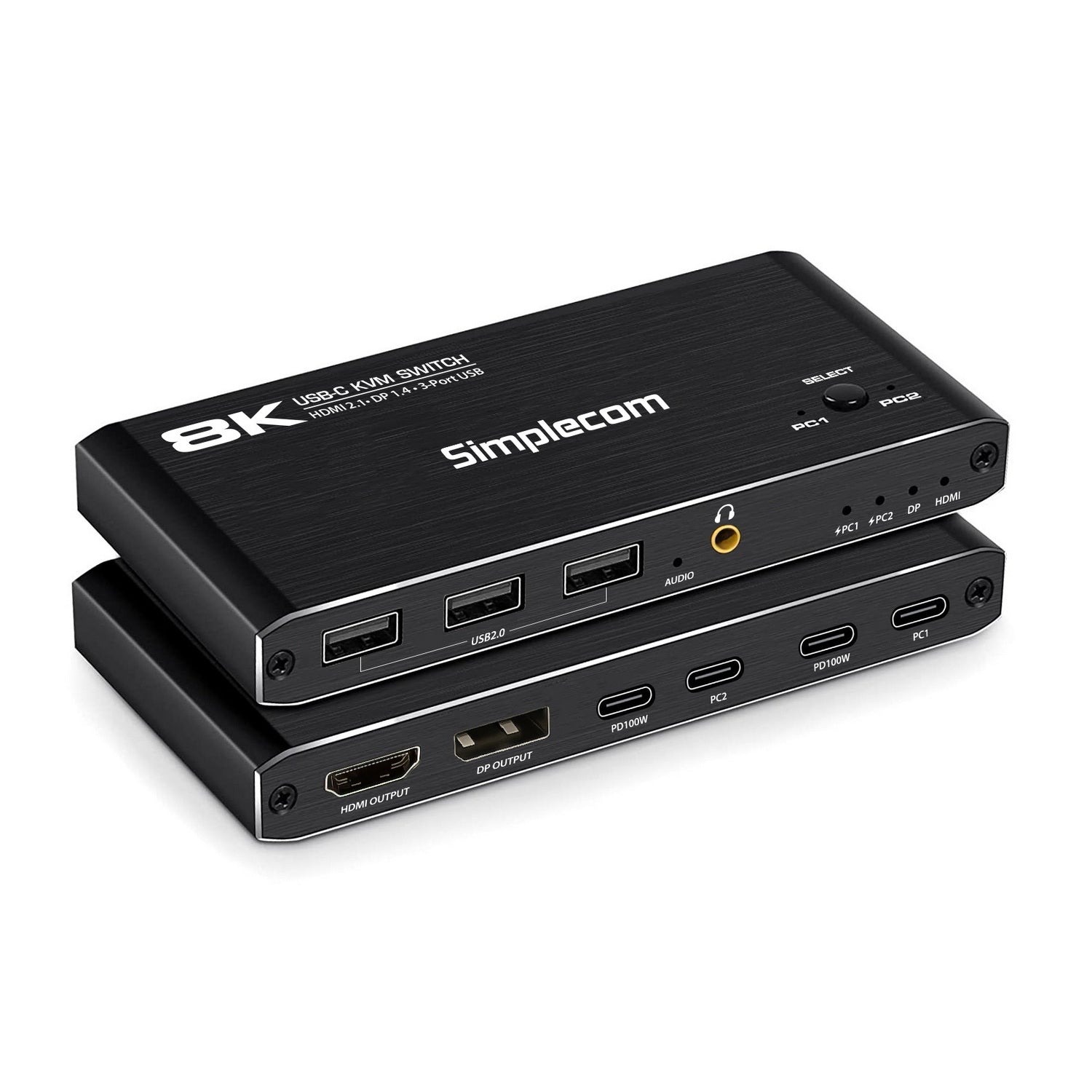

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station

Description:

The Simplecom KM470 2-Port USB-C KVM Switch is a premium solution designed to seamlessly control two laptops with a single set of USB peripherals and an external display. This highly versatile KVM switch integrates a docking station, allowing you to toggle between laptops with ease and efficiency using just a simple button.

Equipped with both HDMI 2.1 and DisplayPort 1.4 outputs, the KM470 supports video resolutions up to 8K, making it ideal for high-end setups with modern displays. The KM470 provides a single USB-C cable connection for video output, data transfer, and PD charging, eliminating the need for multiple cables. It's perfect for users who work across two systems, such as a Windows laptop and MacBook or work and home laptops.

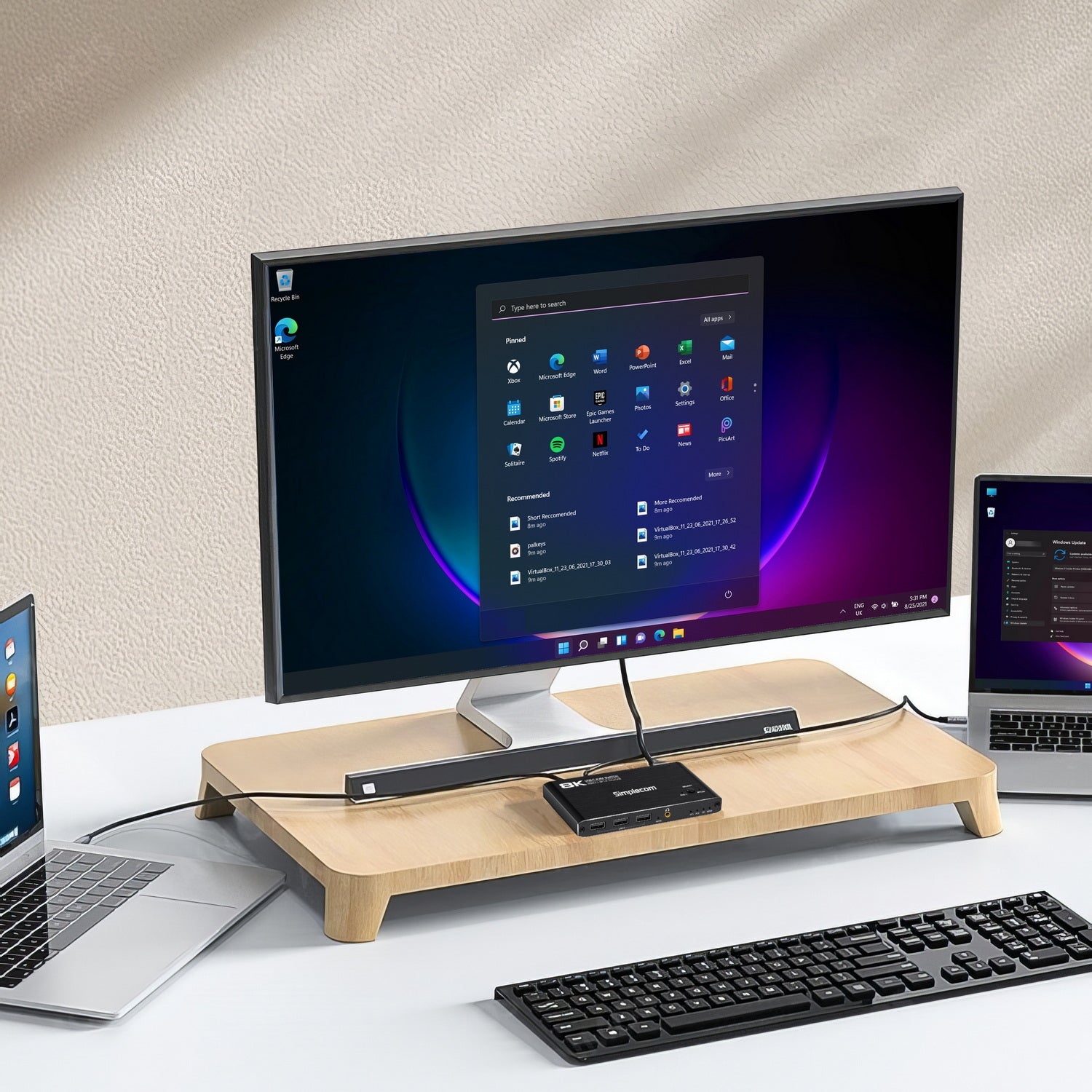

The KM470 streamlines your workstation by enabling dual laptop control with one external monitor and shared USB devices. Its plug-and-play and hot-swappable nature ensures effortless usability, making it an essential tool for boosting productivity and simplifying multi-laptop management.

Key Features:

• Dual Laptop Control with One Set of Peripherals:
  Effortlessly switch between two laptops using a single set of USB peripherals and one external display, reducing desk clutter and enhancing workflow.
• Integrated USB-C Docking Station:

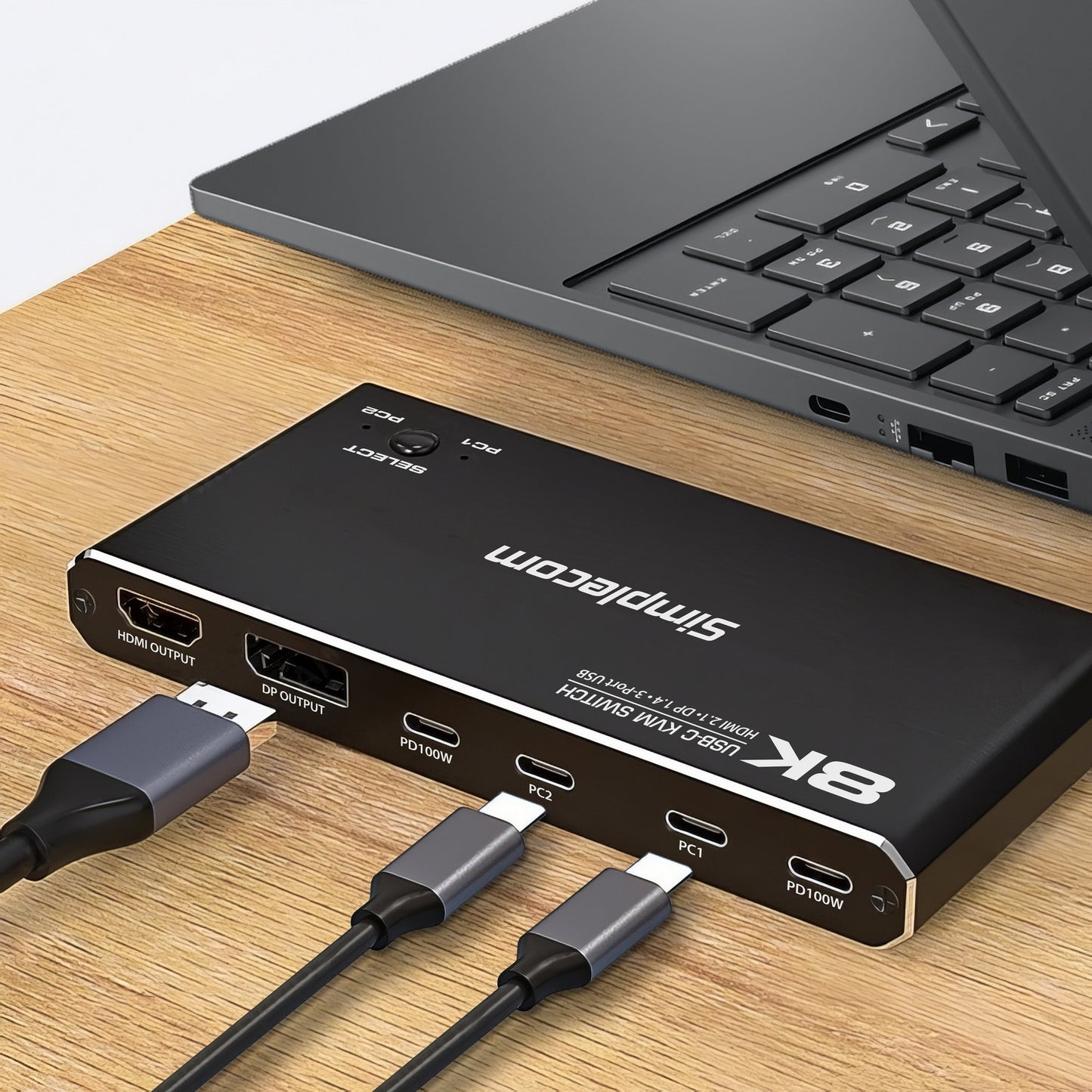

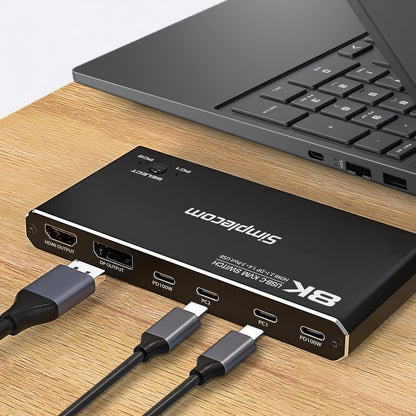

  Utilize a single USB-C cable for video output, data transfer, and PD charging, making setup easy and tidy.
• 8K Video Output Support:
  Supports both HDMI 2.1 and DisplayPort 1.4, delivering video resolutions up to 8K at 30/60Hz (using DSC compression), ensuring a stunning visual experience with the latest high-definition displays.
• Simultaneous Charging:
  Equipped with two USB-C PD charging ports, the KM470 allows you to charge both laptops simultaneously with up to 100W per port.
• USB 2.0 Hub:
  Share USB devices such as a mouse, keyboard, printer, and more through the 3-port USB 2.0 hub.
• Audio Output:
  The 3.5mm audio jack allows you to connect headphones or speakers, providing an all-in-one docking solution for audio, video, and peripherals.
• High-Performance Video:
  The KM470 supports a wide range of video resolutions including 1080p at 60/120/165Hz, 4K at 60/120/144Hz (with DSC), and 8K at 30/60Hz (with DSC), ensuring crisp and smooth visuals across various display types.
• Plug-and-Play:
  This KVM switch is plug-and-play and hot-swappable, meaning you can instantly switch between systems without interrupting your workflow or rebooting.
• Durable Aluminium Casing:
  The high-quality aluminium alloy housing not only looks sleek but also dissipates heat efficiently, ensuring consistent and reliable performance.

Specifications:

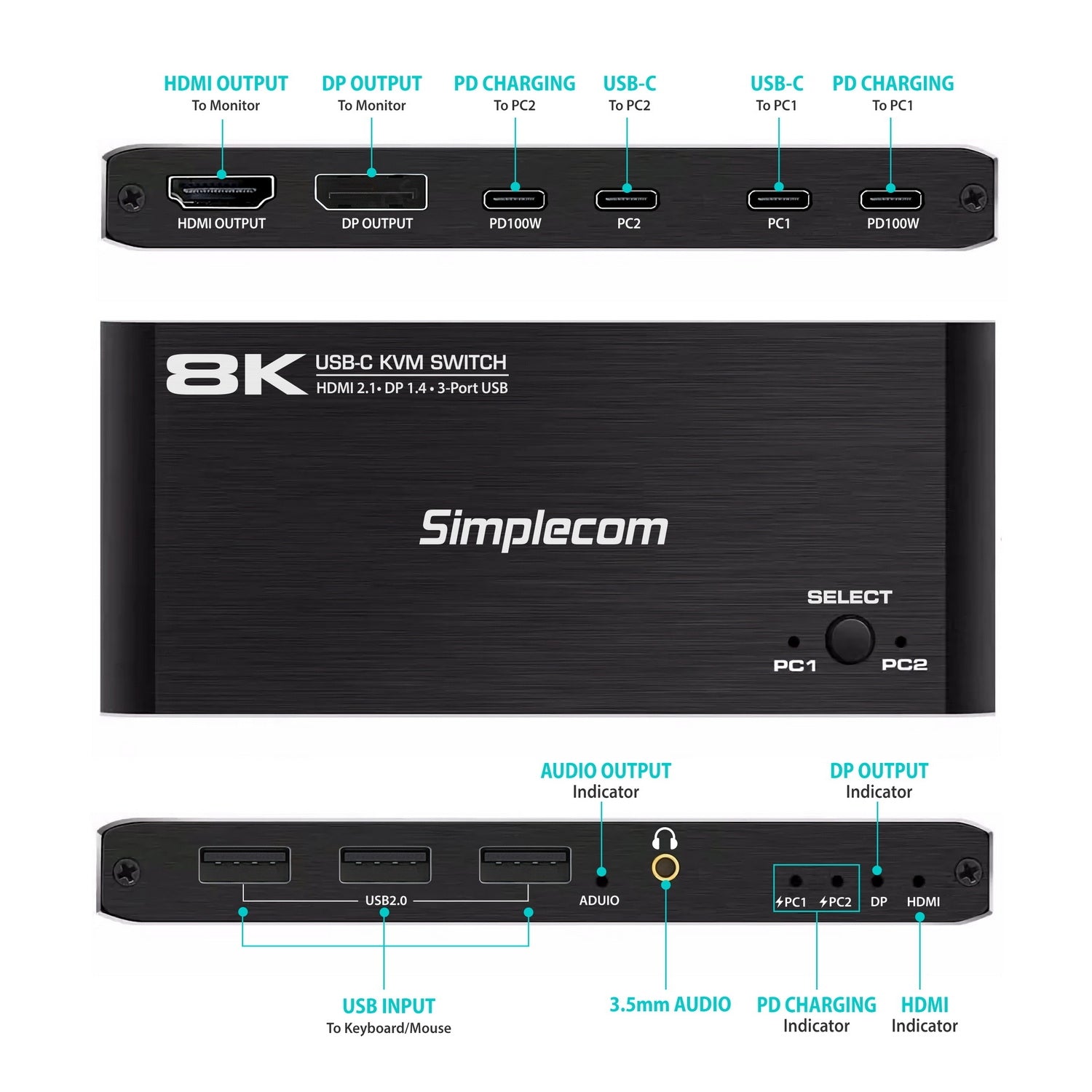

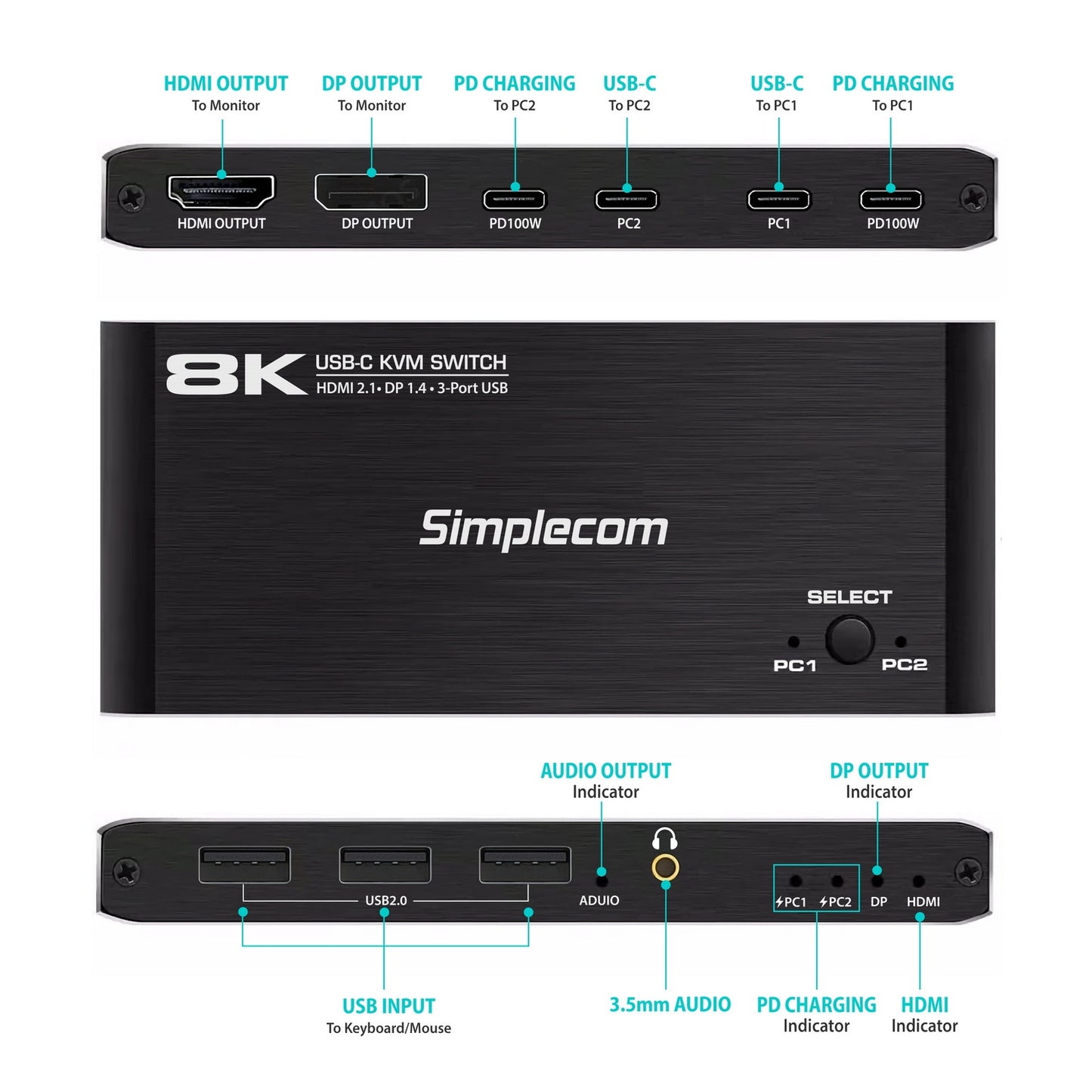

• Model: KM470
• USB Upstream Ports: 2 x USB-C (Connect to PC1 and PC2)
• USB Downstream Ports: 3 x USB 2.0 (Connect USB peripherals)
• PD Charging Ports: 2 x USB-C (up to 100W each)
• Video Output: 1 x HDMI 2.1, 1 x DP 1.4
• USB Max Bandwidth: High-Speed 480Mbps
• HDMI Max Bandwidth: 48Gbps
• DisplayPort Max Bandwidth: 32.4Gbps
• Supported Video Resolutions:
  • 1080p @ 60/120/165Hz
  • 4K @ 60/120/144Hz (DSC)
  • 8K @ 30/60Hz (DSC)
• Audio Output: 3.5mm audio jack (sound output only)
• Operating Temperature: 0 to 50°C
• Dimensions: 13 x 6.3 x 1.6 cm
• Weight: 109g

System Requirements:

• Laptop or mobile device with a fully functional USB-C port supporting DP Alt Mode (DisplayPort Alternate Mode)
• Laptop with Thunderbolt 3, Thunderbolt 4, or USB4 port

Package Contents:

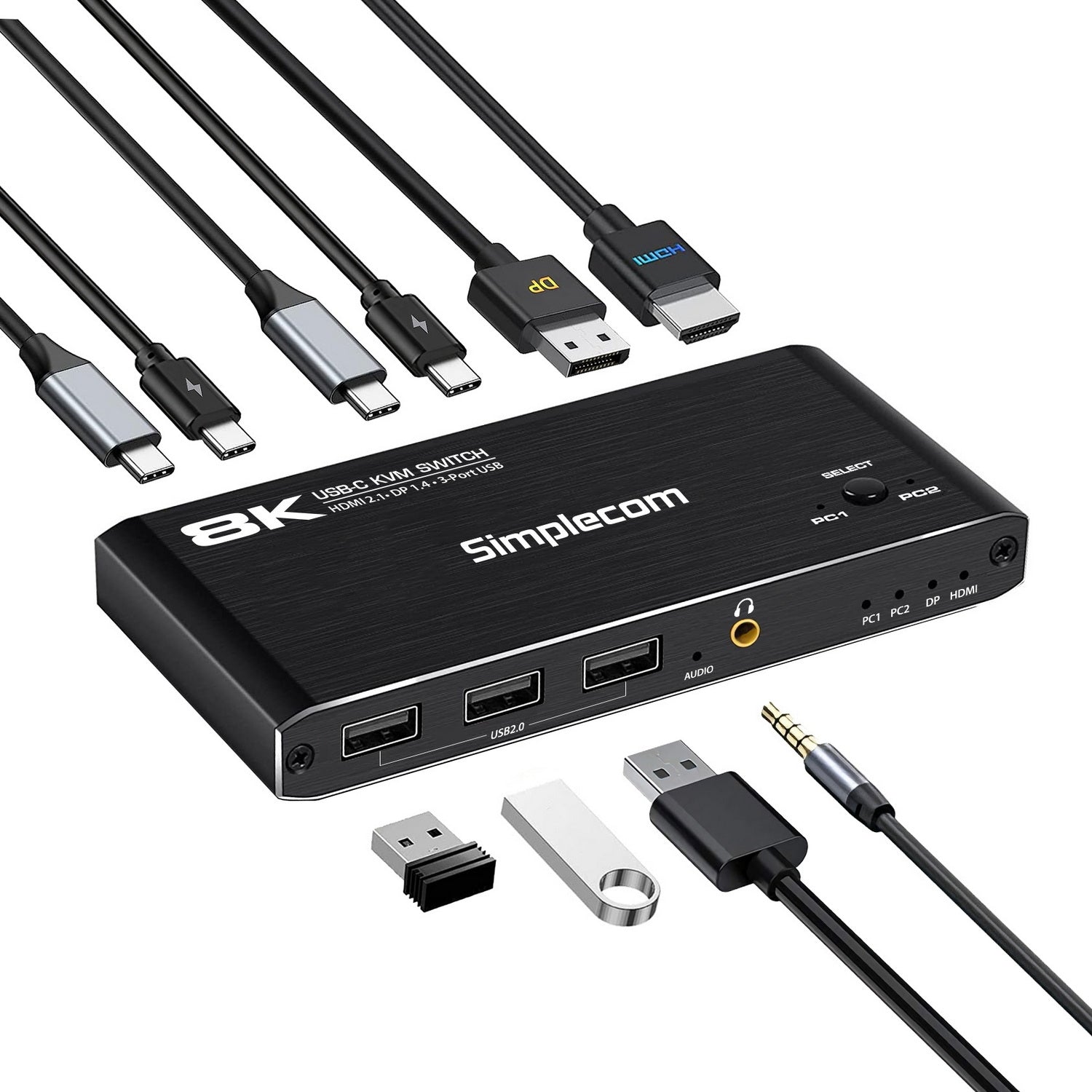

• 1 x USB-C KVM Switch
• 2 x USB-C to USB-C Cables

Important Notes:

• Ensure the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports may only support charging or data transfer without video output capabilities.
• Self-powered via connected laptop, no external power is required.
• The HDMI and DisplayPort cannot be used simultaneously.
• The USB-C PD ports are always enabled for charging both laptops at the same time.
• To support 8K resolution, a Thunderbolt 4 port on the laptop is required, with a maximum cable length of 2 meters for DP 1.4 or HDMI 2.1 cables.

The Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station is an advanced, premium device for simplifying and enhancing your multi-laptop setups. It combines all the essential docking station functionalities with seamless KVM switching, delivering both ease of use and high-performance capabilities for professionals and tech enthusiasts alike.
