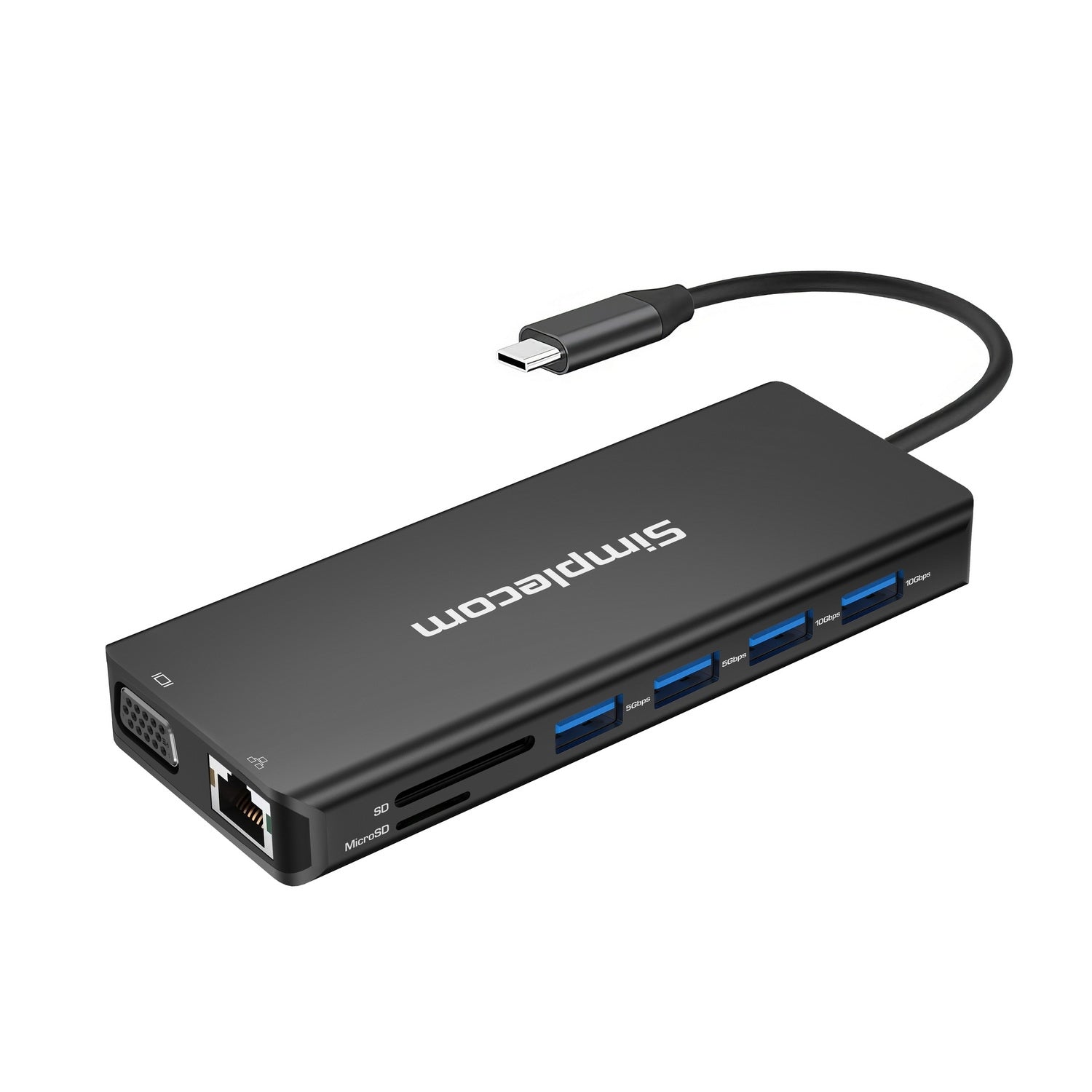

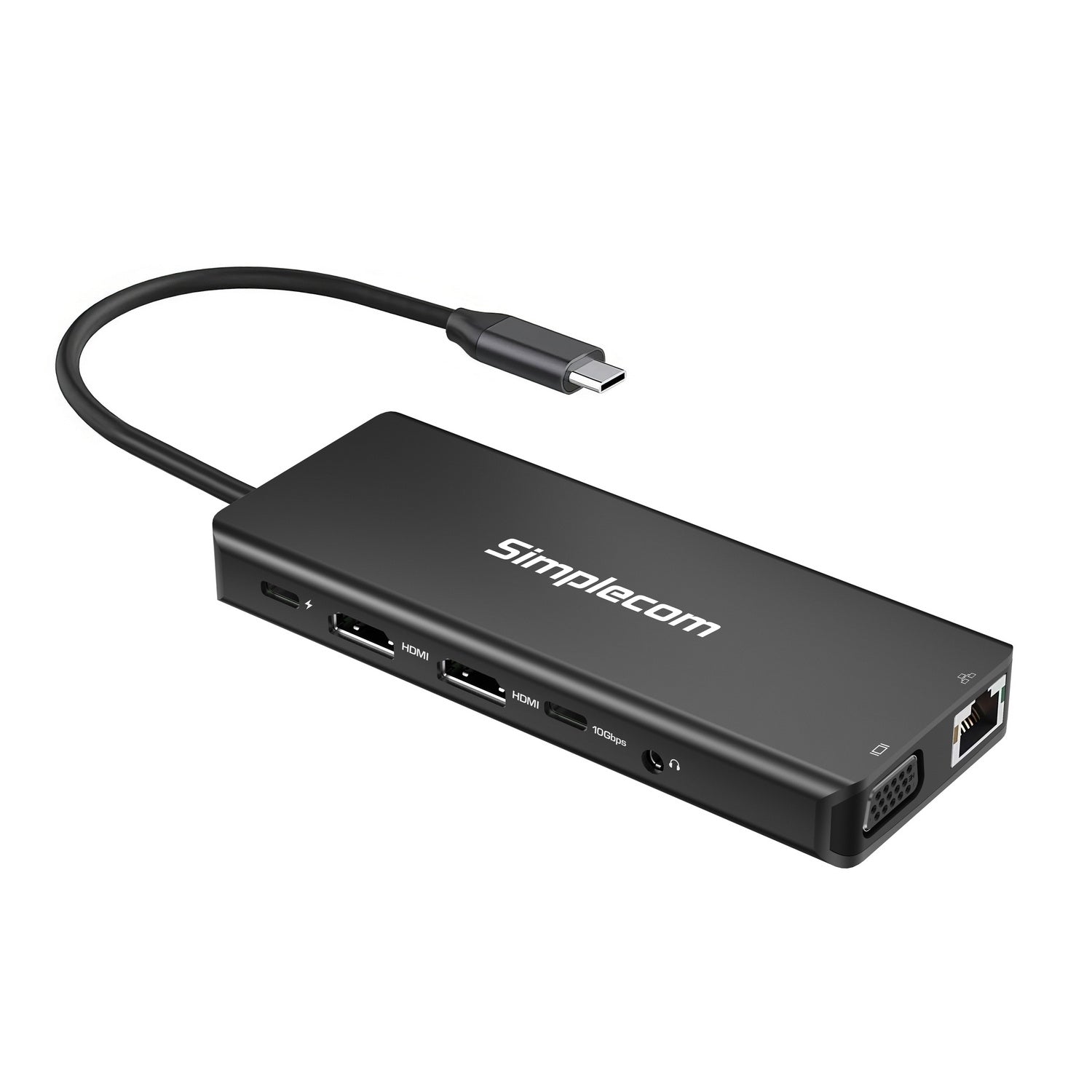

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps

Description:

The Simplecom CHN613 13-in-1 USB-C Docking Station is a robust, all-in-one solution designed to elevate your laptop’s connectivity options, transforming a single USB-C port into 13 essential ports. This high-performance docking station is perfect for professionals and creatives who need a versatile hub to connect to multiple devices simultaneously. With dual HDMI, VGA output, USB 3.2 Gen 2 10Gbps ports, a Gigabit Ethernet port, SD/MicroSD card readers, and 100W PD charging, the CHN613 is an indispensable tool for boosting productivity and simplifying your workspace.

Whether you’re editing large media files, multitasking with multiple displays, or connecting to various peripherals, the CHN613 provides the power and flexibility to manage everything with ease. This docking station supports triple display functionality with MST (Multi-Stream Transport) support for extended displays, while also offering fast data transfer and a stable internet connection. It’s the perfect companion for your laptop, tablet, or desktop.

Key Features:

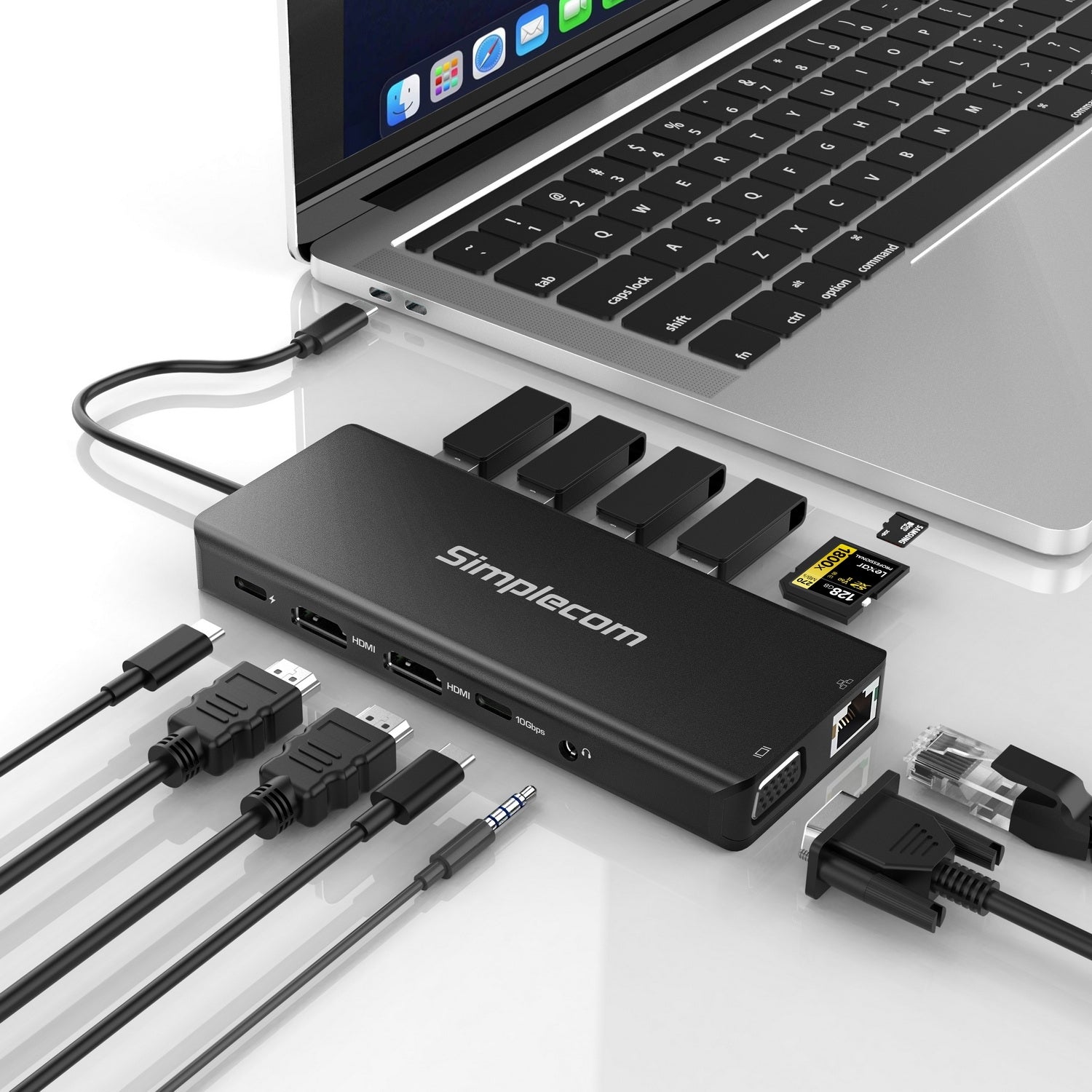

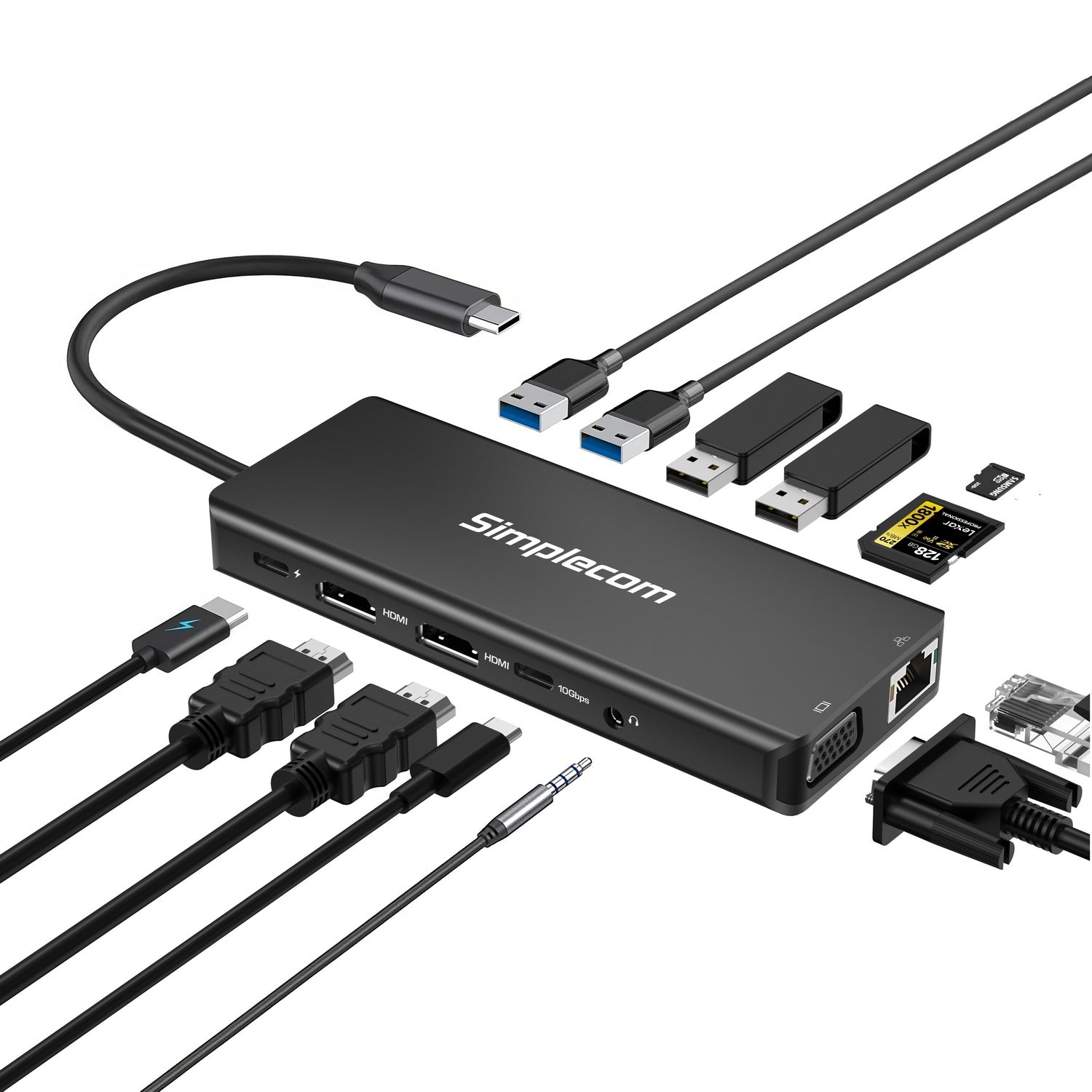

• Comprehensive 13-in-1 USB-C Docking Station: Expands your single USB-C port to 13 essential ports, including dual HDMI, VGA, USB-A, USB-C, SD, MicroSD, Gigabit Ethernet, and audio output, allowing you to easily connect all your devices.

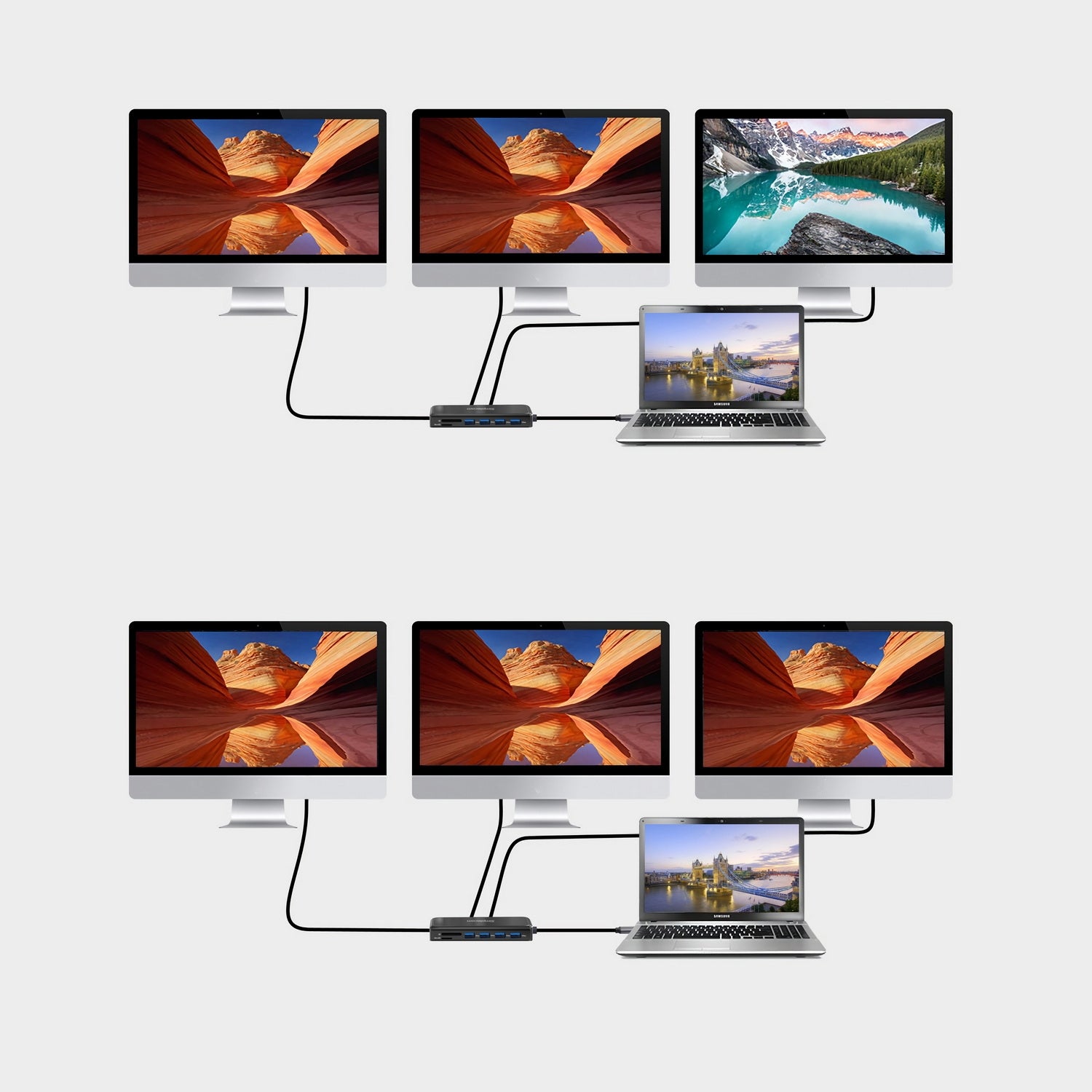

• Triple Video Output with MST Support: Connect up to three external screens with dual HDMI and VGA outputs. Single HDMI supports up to 4K@30Hz, and dual HDMI supports 1080p@60Hz (each screen). Please note that MST is supported only on Windows systems (macOS will support only one extended display).
• Ultra-Fast USB 3.2 Gen 2 Ports: The USB-A and USB-C ports provide 10Gbps data transfer speeds, perfect for connecting high-speed devices like external SSDs, printers, keyboards, and mice. This ensures fast and efficient performance with all your peripherals.
• SuperSpeed Card Reader: Convenient SD and MicroSD card readers allow for fast file transfers with up to 5Gbps data rates, ideal for transferring large media files such as photos, videos, and documents.
• 100W Power Delivery:Charge your connected laptop while utilizing other ports, thanks to the USB-C PD port that supports up to 100W charging. Keep your devices powered without needing a separate charger.
• Gigabit Ethernet: Stay connected with the RJ45 Gigabit Ethernet port, providing stable network speeds of up to 1000Mbps, ensuring smooth internet browsing, streaming, and large file downloads.
• Durable Aluminium Alloy Casing: The sleek and stylish aluminium alloy housing not only looks professional but also helps with efficient heat dissipation, ensuring your docking station performs consistently over time.
• 3.5mm Audio Jack: Easily connect headphones or speakers via the 3.5mm audio jack for an all-in-one docking experience.

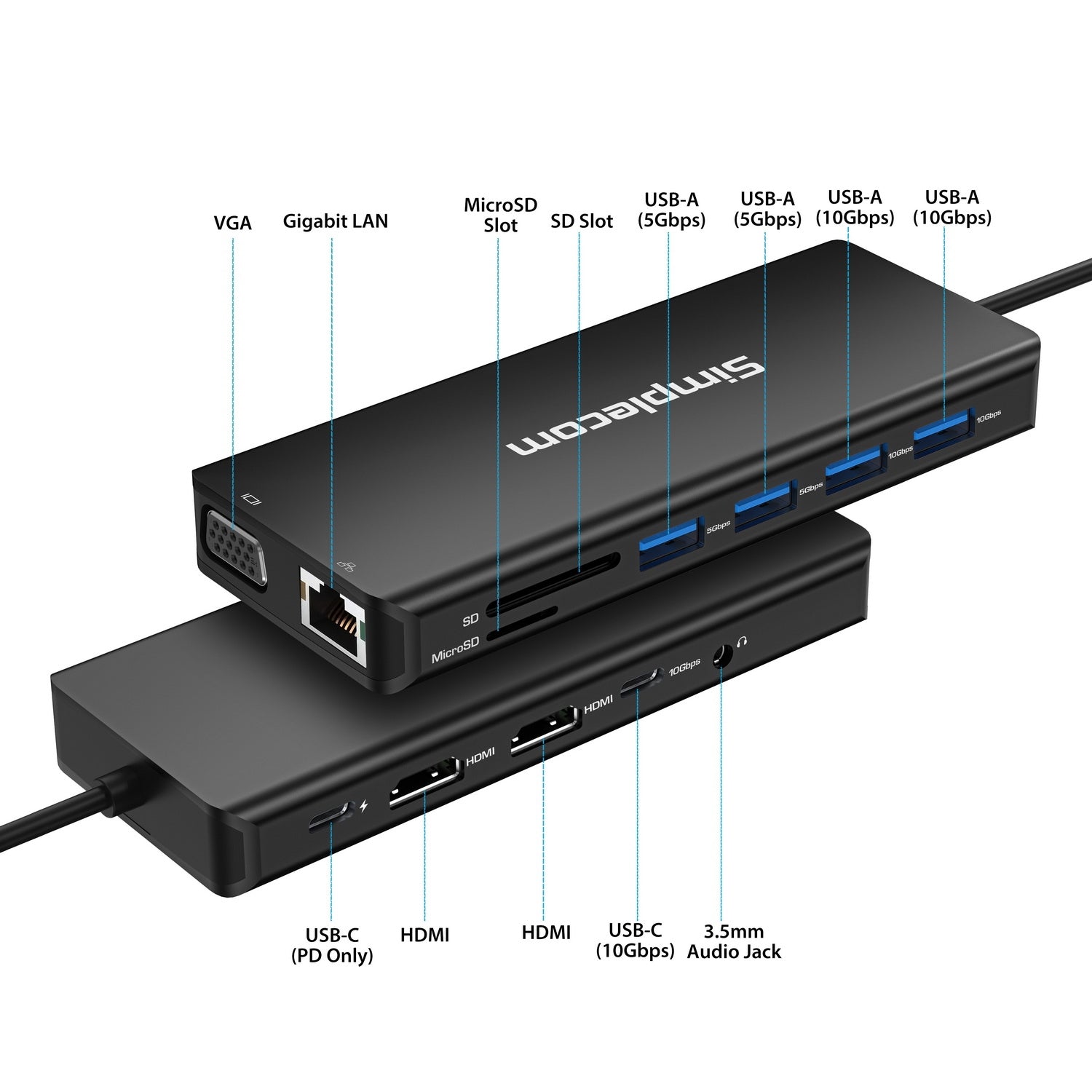

Specifications:

USB Hub:

• 4 x USB-A Female

  • 2 x 5Gbps

  • 2 x 10Gbps

• 1 x USB-C Female (10Gbps)

Video Output:

• 2 x HDMI

• 1 x VGA

HDMI Resolution:

• Single HDMI: Up to 4K@30Hz

• Dual HDMI: Up to 1080p@60Hz (per monitor)

VGA Resolution:

• Up to 1080p@60Hz

MST Support:

• Yes (Windows systems only, allows for 2 extended screens)

RJ45 Port:

• Gigabit Ethernet (10/100/1000 Mbps)

Card Reader:

• SD & MicroSD (SuperSpeed 5Gbps)

PD Charging:

• USB-C Female (charging only, up to 100W)

Audio Output:

• 3.5mm Audio Jack (audio output only)

Operating Temperature:

• 0°C - 45°C

Housing:

• Aluminium Alloy

Dimensions:

• 13.5 x 5.5 x 1.6 cm

Cable Length:

• 15 cm

Weight:

• 220g

System Requirements:

• USB-C Port with DP Alt Mode (DisplayPort Alternate Mode) support
• Windows 8 or above for MST and dual extended screen support
• Thunderbolt USB-C, USB3.2 Gen 2, or USB4 port for 10Gbps data transfer rate
• macOS does not support MST and will support only one extended mode

Important Notes:

• Before purchasing, please confirm that your USB-C port supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports may only support charging or data transfer without video output functionality.
• MST is supported only on Windows systems; macOS supports only one extended display.
• When connecting two HDMI monitors, the screen resolution will be limited to 1080p.
• VGA output also supports up to 1080p, but when connected, the resolution will be limited.
• The USB-C PD port is for charging only and cannot be used for data transfer. Please use another USB-C port for data transfer.
• For stable charging, please connect a power delivery adapter when power is insufficient.

The Simplecom CHN613 13-in-1 USB-C Docking Station is an exceptional tool for boosting your productivity and simplifying your workspace. With its triple video outputs, super-fast USB ports, and 100W PD charging, it’s a must-have for anyone needing a high-performance docking solution that handles multiple devices and displays effortlessly
